Inicio /Productos/Máquina de ensayo de tracción manual/Tensile Compression Bending Bending Test For Metal Materials ASTM E4 Kn Universal Tensile Strength Testing Machine Manufacturer 1000

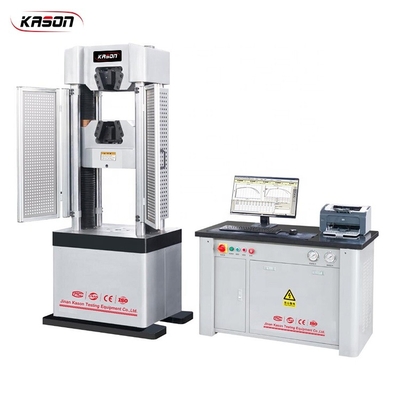

Tensile Compression Bending Bending Test For Metal Materials ASTM E4 Kn Universal Tensile Strength Testing Machine Manufacturer 1000

1 Set
MOQ
Tensile Compression Bending Bending Test For Metal Materials ASTM E4 Kn Universal Tensile Strength Testing Machine Manufacturer 1000
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 1 year
Customized support: OEM, ODM, OBM, Software reengineering
Model Number: WE-600D
Power: Hydraulic
Product name: Digital Display Hydraulic Universal Steel Tensile Testing Machine
Application: tension compression bending flexural test for metal materials
Structure: 6 Column (Four Columns Two Ball Screws)
Control Way: Loading Process Manual Control
Max. Load: 600kN
Load Accuracy: ≤± 1%
Load Range: 2%~100%FS (6KN~300KN)
Crossbeam Lifting Speed: 200mm/min
Max. Tension Test Space: 650mm
Max.Compression Test Space: 550mm
Certificación: CE, ISO
Información básica
Certificación: CE, ISO
Model Number: WE-600D
Pago y Envío Términos
Packaging Details: Standard Export Wooden Case Or As Customers' Requirements
Supply Ability: 300 Set/Sets per Month
Descripción de producto
ASTM E4 1000 Kn Tension Universal Force Test Machine manufacturer
Product Description
Standards:
EN 10002-2; ASTM E4, ISO 7500-1; DIN 51221 and BS1610 guide, etc.
1000 Kn Tension Test Machinery 1000 Kn Universal Force Test Machine 1000 Kn Universal Testing Machine 1000 Kn Utm Universal Testing Machine
Types:
Digital display hydraulic universal testing machine, computer display hydraulic universal testing machine; computer control hydraulic universal testing machine

Specification
Model
HUT305S
HUT305E
HUT305W
HUT605S
HUT605E
HUT605W
HUT106S
HUT105E
HUT105W
HUT126E
HUT126W
HUT206E
HUT206W
Max. Load(kN)
300
600
1000
1200
2000
Load Accuracy
Class 1/ Class 0.5
Load Range
2%~100%FS
Load Resolution
1/350000
Deformation Measurement Range
2%~100%FS
Deformation Accuracy
≤± 1%
Displacement Resolution
0.01mm
Displacement Error
≤±0.5%
Testing speeds (mm/min)
0.1~123
0.1~123
0.1~70
0.1~70
0.1~70
Max. Tension Test Space(mm)
780
900
950/980
930
1250
Clamping Method
Manual clamps(S series) Hydraulic Automatic Clamp(E and W series)
Compression Plate Size
Φ 160mm
Bending Roller Distance
450mm
Width Of Bending Rollers
120mm
Power Supply
3-phase, AC380V, 50Hz (Can Be Customized)
Please contact KASON directly for best quotation
Application
Application
For static and cuasi-static test (low frequency fatigue) for high loads in many types of tests. Specially indicated to switch test mode, thanks to its dual space design.
