Inicio /Productos/máquina de prueba extensible electrónica/Hot-selling Rebar 300KN Universal Hydraulic Tensile Strength Testing Equipment 750*600*2200mm

Hot-selling Rebar 300KN Universal Hydraulic Tensile Strength Testing Equipment 750*600*2200mm

Hot-selling Rebar 300KN Universal Hydraulic Tensile Strength Testing Equipment 750*600*2200mm
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Información básica
Pago y Envío Términos
Descripción de producto
Product Description

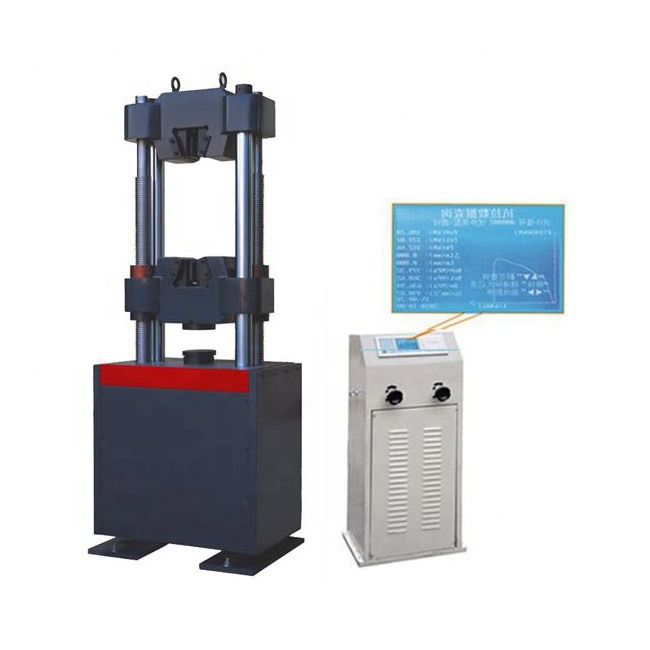

300KN Hydraulic Rebar Universal Tensile Testing Machine
The main machine adopts two-column, two-screw, and lower cylinder type. The tensile space is located above the host, and the compression and bending test space is located between the lower beam of the host and the workbench. The force measuring instrument adopts high-definition LCD display, and the test data is convenient and intuitive.
Specification
Max load
300KN
Measuring range
4%-100%
Relative error of test force of indicating value
＜±1% of indicating value
Max tensile test space
520mm
Max compression test space
400mm
Piston stroke
150mm
Distance between the columns
440mm
Max clamping range of round sample
Φ6-Φ26mm
Max clamping thickness of flat sample
0-15mm
Max clamping width of flat sample
75mm
Size of compression plate
φ160mm
Clamping type
Hydraulic clamping
Total motor power
2kw
Size of testing machine
750*600*2200mm
Weight
1600kg
Packing & Delivery
Wooden packaging for export Such a careful packaging Eliminate all possible problem caused by shipping
Company Profile
Our company mainly produces 10 series, 30 categories of products: electronic universal testing machine (tensile testing machine) series, hydraulic universal testing machine series, electro-hydraulic dynamic and static fatigue testing machine series, metal torsion testing machine series, metal impact testing machine series, spring testing machine series, metal bending testing machine series, hydraulic compression testing machine series, friction and wear testing machine series, and non-standard special customized products series, at the same time supporting peripheral testing equipment such as cement, concrete laboratory, metallographic testing equipment, and non-destructive testing equipment etc.
Certifications
Exhibition
