Caracteristicas

Especificaciones

Model Number: WDW

Power: Electronic

Usage: Tensile Testing Machine

Load: 100KN

Software: English version

Load accuracy: â‰¤Â±1%

Deformation accuracy: â‰¤Â±0.5%

Displacement resolution: 0.001mm

Load speed: 0.01mm/min ~ 500mm/min

Tensile space: 600mm

Compression space: 700mm

Voltage: 220V, 1ph, 50Hz .

Información básica

Model Number: WDW

Pago y Envío Términos

Packaging Details: 1. Inner package: dust-proof plastic bag 2. Outer package: standard export wooden case with pallet 3. Special packages: according to buyer's requirements 4. The packages suitable for international transport by sea, by air or any other delivery methods

Supply Ability: 35 Set/Sets per Month

Descripción de producto

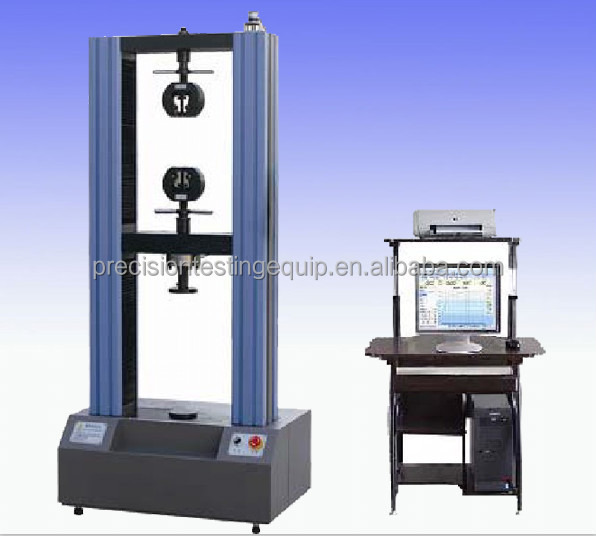

100KN Double coloum Electronic Tensile Testing Machine for Seat Belt

Product Description

Electromechanical Testing Machines are designed and manufactured according to ASTM, ISO, DIN, GB etc standards. It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customer’s request. It is for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

Specifications

Model	WDW-300	WDW-200	WDW-100	WDW-50	WDW-20	WDW-10
Max. Load	300KN	200KN	100KN	50KN	20KN	10KN
Load accuracy	≤±1%
Load range	2%-100% of full scale
Test speed	0.01-250mm/min		0.01-500mm/min	0.01-500mm/min
Speed accuracy	≤±1%
Displacement resolution	0.01mm
Effective test width	570mm		400mm	400mm
Effective tensile space	600mm			600
Effective compression space	700mm			700mm
Dimension	1130×650×2650mm		830×550×2000mm	760×500×1750mm
Power supply	380V, 3ph, 4/3KW		220V, 1ph, 1.5KW	220V, 1ph, 1KW
Weight	1800KG		720KG	460KG
Grips	Wedge type, plate type and other grips as consumer’s demand
Load frame type	Table type

Feature:

1. High Reliability,easy operate

2. Test system use high speed,low vibration motor drive unit .
3. Ball screw no backlash,low noise,high driving efficiency

4. High accuracy photoelectric encoder

5. Special testing machine software

6. Thousands of test fixture
7. High stiffness column

8. Limit switch to guarantee the safety

Accessories:

1.Can provide different accessories and do as customer's request for test fixtures & Grips.

2. Multi sensor supported.Many load cell and 4 extensometer can be define.

Software:

1. Multi languages supported,easy to control

2. Full digital display and computer control

3. Manual or Program control of test process

4. Multilevel Authorization Access

5. Perfection of diagramming functions

6. Test report creation as Excel, Word and Template

--------------------------------------------------------------------------------------------------------------------------------------------------------

Our Services

1. Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan

PLG 300C PC Control High Frequency Fatigue Testing Machine

Model	PLG-10C PLG-20C PLG-50C PLG-100C PLG-200C PLG-300C
Mean load max(kN)	±10 ....
Load step	1,2,5
Accuracy of static load	≤±1%
Range of frequency(Hz)	60~300HZ
Power	380V, 3phs,

-------------------------------------------------------------------------------------------------------------------------

WAW Computer Control Servo Hydraulic Universal Testing Machine

Model	WAW-300E WAW-600E WAW-1000E WAW-2000E
Max. Testing Load (kN)	300 ....
Load Accuracy	≤±1% from 2% to 100% of full scale
Strain accuracy	≤±0.5%
Load frame Type	4-column and 2-screw structure
Max. tensile space (Including piston Travel) mm	690

-------------------------------------------------------------------------------------------------------------------------------------------------------

Our product range:

1. Electromechanical Universal Testing Machine

2. Hydraulic universal testing machine

3. Spring testing machine

4. Fatigue testing machine

5. Creep and rupture testing machine

6. Horizontal tensile testing machine

7. Torsion testing machine

8. Cold bending testing machine

9. Cupping testing machine

10. Impact testing machine (Nist)

11. DWTT drop weight testing machine.

12. Compression testing machine

13. Friction and wear testing machine

Concact LISA for more information

Model	YES-1000
Load display accuracy	±1%
Distance between upper and lower platen	320mm
Diameter of lower platen	300 mm
Piston stroke	30mm
Pump nominated pressure	40MPa
