Name: Widely Price of WAW-1000DL Series Computer Control Melt Tensile Testing Machine Tensile Price
Brand: Widely Price of WAW-1000DL Series Computer Control Melt Tensile Testing Machine Tensile Price
SKU: WAW-1000DL
Price: 30 USD
Availability: InStock
Rating: 4.6 (153 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Warranty: 1 year, 12 Months

Customized support: OEM, ODM

Model Number: WAW-1000DL

Power: Hydraulic

Product name: Computer Control cast iron tensile Pull Testing Machine

Standard: GB,ISO,ASTM,DIN

Function: Tensile and Pulling test of metal materials

Weight: 5000kg

Application: Widely

Certificate: CE ISO

Accuracy: 1 Grade/0.5 Grade

Color: Request

Power supply: 220V 50Hz

Certificación: ISO

Información básica

Certificación: CE ISO, ISO

Model Number: WAW-1000DL

Pago y Envío Términos

Packaging Details: Standard export wooden box or as your request

Supply Ability: 100 Set/Sets per Month cast iron tensile Testing Machine

Descripción de producto

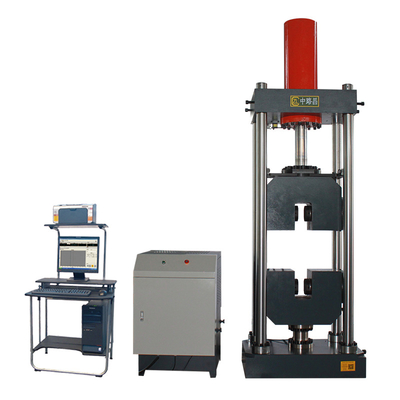

WAW-1000DL Series Computer Control cast iron tensile Pull Testing Machine Price

Product Description

Main Function and Usage

1. This product is mainly used for the tensile test of metal materials. It is totally conformed to the requirement of GB/T228.1-2010,Metallic materials.Tensile testing.Part 1: Method of test at room temperature.

2. This product is safe and reliable, with reasonable product structure,elegant appearance and large stiffness.

Main Specifications and Technical Parameter

Model	WAW-1000DL
Class of Testing Machine	Class 0.3/0.5
Maximum Testing Force(kN)	1000
Measure Range of Testing Force(kN)	10~1000
Value Display Accuracy of Testing Force	No more than ±0.3%/±0.5% inaccuracy from the value display
Discrimination of Displacement Measure (mm)	0.005
Accuracy of Displacement Measure	No more than ±0.5 % inaccuracy from the value display
Discrimination of Deformation Measure(mm)	0.001
Maximum Piston Stroke(mm)	680
Maximum Spacing of Tensile Jaw(mm) (Including Piston Stroke)	700
Accuracy of Deformation Measure	No more than ±0.5 % inaccuracy from the value display
Overload Protection	If beyond the 5% of the full scale
Clamping Method	Hydraulic wedge clamping
Round Specimen Clamping Range(mm)	Φ14~Φ60
Flat Specimen Clamping Range(mm)	0~60
Column Number(Unit)	4
Overall Dimension(mm)	1000×750×3160
Total Power(kW)	7.5
Weight(kg)	5000

Advantages

Certifications

Company Information

Packaging & Shipping

1. Packing Method: Horizontal Packing to saving moreipping cost.

2. Packing Materials: Plywood Case metting export long transport requirement.

3. Shiping Time: Shipped within 15-20 days after payment.

4. Shipping Way: Shipped by sea or air is available.

Factory Show

FAQ

1. Why Choose Us?

>Coaxial degree of good host: Tensile test to avoid the impact of lateral force to ensure a very high test success rate
>High rigidity of the host: low failure rate, good reliability, long service life
>Measurement and control hardware: sensors, extensometers, photoelectric encoders are brand-name configuration. High accuracy, good year stability.
>Measurement and control system software: After the National Steel Materials Testing Center review. To ensure that the export data qualified, the success rate of comparative test.
>Each hydraulic universal testing machine factory has passed the 138 program test items
>Each electronic universal testing machine factory has passed 112 program test items
>Each pressure test machine factory has passed the 76 program test items
>We promise, after-sales service for 12 months, promptly and promptly deal with all the problems aftermarket.

2.Are you a factory?

>Yes,Factory+trade,17 years focusing on test instruments field.

3. What's the product delivery time?

>Within 5 days after receive the payment

4.What's your payment terms?
>We accept T/T, L/C or Western Union.

5.What's your terms of trade?
We accept EXW, FOB, CNF, CIF, and so on.
