Portable Darsen ASTM D 4846 Small Children's Clothes Toys Tensile Testing Machine Button Break Pull Out Testing Machine DS-416PC

Summary :

Snap Button Pull Tester ( button pull test machine ), to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys(To avoid button fall off garments & risk of infant eating), also as a Push Pull Tester for compression and tensile testing of small samples(special attachments are available). It can be enhanced with clamps & accessories for testing of other Snaps, Jean Buttons, Four Hole Buttons & Garments Accessories such as Zippers, Bows, Appliqué, Toggles, Hooks/Bars, and D-Rings, amongst others.

Test Standards:

ASTM D7142-2/ASTM F963/ASTM PS79-96/ASTM D1776/ASTM D4846-88

CFR 1500.51-53

EN 71-Part 1

GB 6675

ISO 8124

M&P P115A

Test theory:

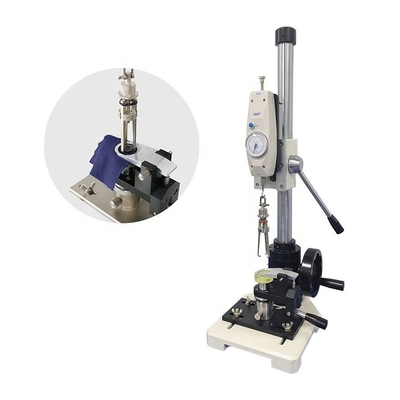

Our snap button pull test machine consists of an upper snap clamp, a lower fabric clamp and force gauge mounted on a stand, a hand wheel on the bottom of snap tester which allows fine control with convenient operation.The snap component is gripped by the Upper Snap Clamp and the garment is fixed to the lower Fabric Clamp. By turning the hand wheel, The operator can apply a specific force and the holding force or the breaking strength can be recorded.

Main Features:

1.The machine is supplied with standardized weights .

2.Equipped with fully accessories.

3.The structure is specially designed and high precision of test results.

Technical Specifications:

Main accessories :

1. Upper snap clamp

2. Upper stud clamp

3. Three pronged clamp

4. Two claw clamp

5. Long nose vise clamp

6. Lower grasp button kit

7. Lower fabric clamp

8. 15 LBS Weight (optional)

We have professional packing team and shipping forwarder to pack and deliver your products!

Packing:

1. Out packing:Standard export wooden case.

2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.

3. Checking teams: Specialized staff to inspect and classified your goods.

Shipping:

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.

During the whole business process, we offer Consultative Selling service.

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
